V2-6B 6.5

Price:: RRP: £638.40 inc VAT
Code:: COMV26B
Manufacturer Code:: 911.1314.900
Brand:: Community

Main Features

Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
Rotatable square horn
Terminal strip and NL4-compatible connectors
Mounting yoke included with 10° and 20° vertical standoffs
Finish: Black
Coverage: 90° x 70°

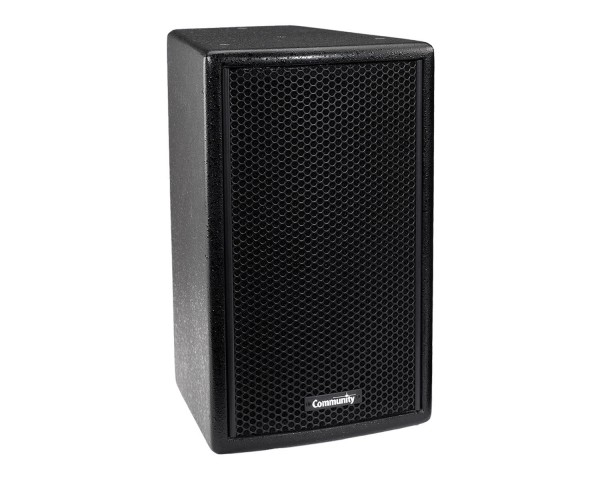

V2-6B 6.5" 2-Way Compact Loudspeaker Black

The V2-6 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the V2-210S, a V2-6 system will produce high-fidelity, broad spectrum sound that belies its modest size. The V2-6 is also an excellent choice for ancillary delay applications. When used to augment a front-of-house system in such venues as auditoria, theaters and houses of worship, delay loudspeakers can significantly even-out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-6 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalising the installation.

The V2-6 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device.

Product Features

Delay fill
DYNA-TECH™ driver protection circuitry
Ferrofluid-treated HF driver for improved heat dissipation
Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
Rotatable square horn
Terminal strip and NL4-compatible connectors
Mounting yoke included with 10° and 20° vertical standoffs
Finish: Black
Coverage: 90° x 70°

Applications

Restaurants, pubs, cafés
Houses of worship
Shopping malls, retail environments
Airports

Product Specifications

Dimensions (H x W x D): 15.5" x 9.8" x 10.1" (395 x 249 x 258 mm)
Finish: Black catalysed polyester painted 11-ply cross-laminated birch with powder-coated steel grille
Nominal Beamwidth (H x V): 90° x 70°
Continuous Max Output: 112 dB (118 dB Peak)
Sensitivity (1W/1m): 92 dB
Power Handling: 100W continuous @ 8 ohms
Operating Range: 90 Hz – 18 kHz
Transducers: LF - 1 x 6.5” cone , HF - 1 x 1”

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
