UA845UWB Antenna Distribution System 10 x Cables 174-1805 MHz

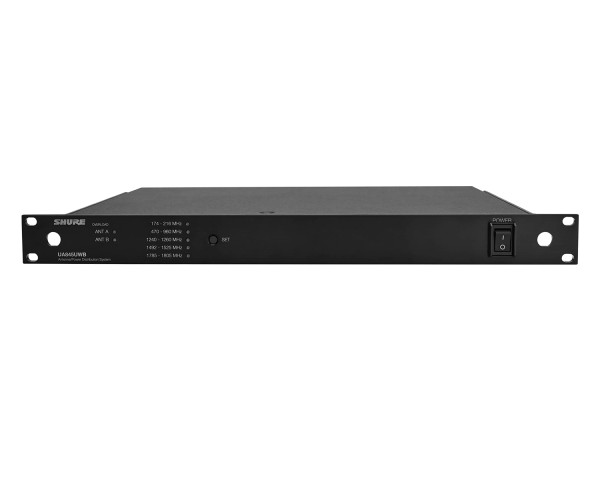

Shure UA845UWB Antenna Distribution System 10 x Cables 174-1805 MHz - Main Image

Shure UA845UWB Antenna Distribution System 10 x Cables 174-1805 MHz - Image 1

Shure UA845UWB Antenna Distribution System 10 x Cables 174-1805 MHz - Image 2

Price:: RRP: £1,544.40 inc VAT
Code:: SHUUA845UWBUK
Manufacturer Code:: UA845UWB-UK
Brand:: Shure

Main Features

5 Selectable Frequency Ranges
Front panel LED indicators display red if RF power is overloading
Allows up to four wireless receivers to use the same two antennas
Cascade ports allow connection to a fifth receiver or a second UA845UWB
Compatible with all Shure wireless microphone receivers operating within a compatible frequency range
Multiple receivers can be daisy-chained and powered from a single source via the power output connectors

The Shure Model UA845UWB is an amplified, VHF and UHF Antenna Distribution System that expands a wireless microphone system by splitting one pair of antennas to multiple Shure Axient Digital, UHF-R, ULX-D, BLX4R, SLX4 and BLX4R. It also amplifies RF signals to compensate for insertion loss due to splitting signal power to multiple output connectors. Each UA845UWB allows up to four receivers to use the same antennas. CASCADE connectors allow connections to a fifth receiver or a second UA845UWB.

Product Features

5 Selectable Frequency Ranges The UA845UWB allows more options for avoiding intermodulation artifacts by switching between one of the five frequency bands
RF Power LED Indicators Front panel LED indicators display red if RF power is overloading.
Expandability The UA845UWB Antenna Distribution System is designed for large wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the cascade ports allow connection to a fifth receiver or a second UA845UWB
Compatibility The UA845UWB is compatible with all Shure wireless microphone receivers operating within a compatible frequency range
Cascade Ports Two 50 ohm, BNC-antenna cascade ports allow an additional UA845UWB unit or a fifth wireless receiver
A large wireless system can be run off of a single pair of antennas
Power Output and Out Connectors Multiple receivers can be daisy-chained and powered from a single source via the power output connectors
Low Noise and Intermodulation Distortion The UA845UWB maintains clean signals with minimal distortion
Insertion Loss Compensation Whenever a signal is split to multiple output ports, there is a loss in signal strength. The UA845UWB amplifies signals to compensate, ensuring a strong signal to the receivers
Front-Mounted Antennas The UA845UWB comes with hardware to front-mount the antennas, if desired

Product Specifications

Carrier Frequency Range
- Band 1: 174 to 216 MHz
- Band 2: 470 to 960 MHz
- Band 3: 1240 to 1260 MHz
- Band 4: 1492 to 1525 MHz
- Band 5: 1785 to 1805 MHz
Distributed Output Level (Gain) 0 dB, typical:
Receiver Antenna Input, Output Ports 1 to 4: -2 dB to +2 dB
Receiver Antenna Input, Cascade Output: -1 dB to +1 dB
Output Connector Isolation: >25 dB, typical
Third-order Overload Intercept Point (OIP3): 24 dBm, typical
Input-Output AC Line Voltage, Switched: 100 to 240 V AC, 50/60 Hz
DC Output: 15 V DC, 4 Connectors
Output Current Combined total from all DC outputs: 2.5 A, maximum
Impedance: 50 Ω
Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
Dimensions: 44.5 x 482.6 x 295.3 mm H x W x D (1.75 x 19 x 11.6in.)
Net Weight: 3.32 kg (7.3 lbs)
Connector Type: BNC
Power Consumption V AC Typical without powered antenna attached or receivers connected to the DC outputs: 14.1 W per unit
